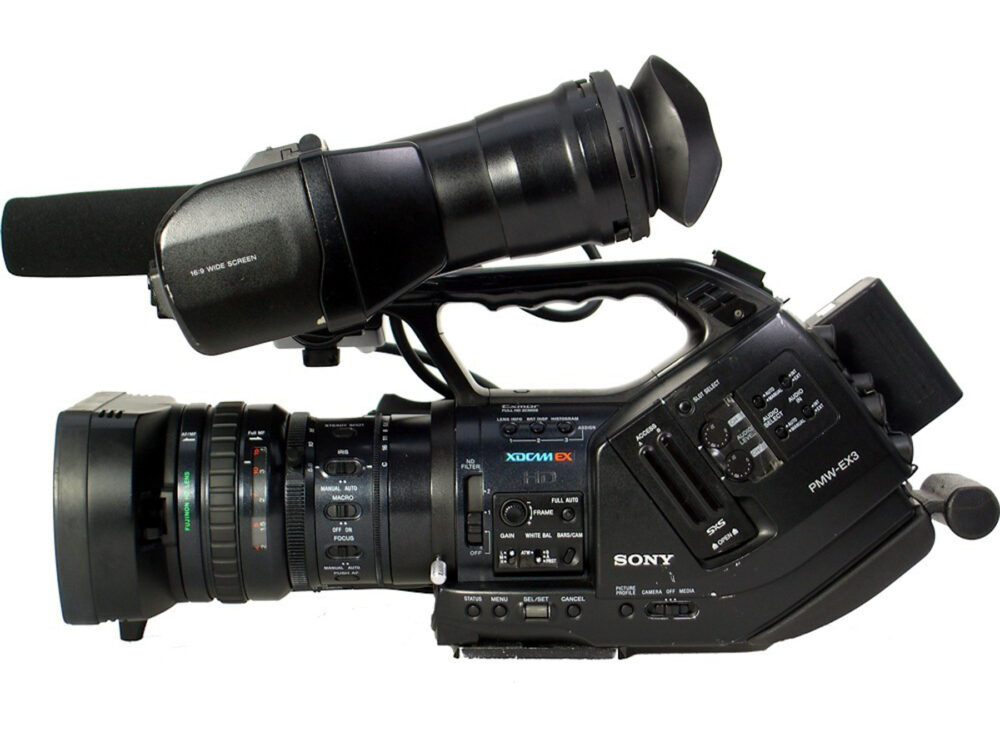

SONY XDCAM EX-3 CineAlta HD camera

RECORDING FRAME RATE – PAL HQ mode: 1920×1080/50i, 25P, 1280×720/50P, 25P SP mode: 1440 x 1080/50i Native 24P recording HQ mode: 100 min. with two 16 GB memory cards SP mode: 140 min. with two 16 GB memory car LENS SPECIFICATIONS ½ – inch EX mount Zoom ratio: 14x (optical), servo/manual selectable Focal length: f = 5.8 to 81.2 mm (equivalent to 31.4 to 439 mm on 35 mm lens) Iris: F1.9 to F16 and Close, servo/manual selectable CAMERA SPECIFICATIONS Pickup device: 3-chip ½ – inch type Exmor CMOS Effective picture elements: 1920(H) x 1080(V), 16:9 Optical system: F1.6 prism system Built-in filters: ND filter OFF: Clear, 1: 1/8ND, 2: 1/64ND Sensitivity: (2000 lx, 89.9% reflectance) F10 (typical)(1920 x 1080/50i mode) Minimum illumination: 0.14 lx (typical) (1920 x 1080/50i mode, F1.9, 18 dB gain, with 64-frame accumulation) S/N ratio: 54 dB (Y)(typical) Horizontal resolution: 1000 TV lines or more (1920 x 1080i mode) Shutter speed: 1/33 to 1/2000 sec. Shutter angle: 180, 90, 45, 22.5, 11.25 degrees Slow Shutter (SLS): 2-, 3-, 4-, 5-, 6-, 7-, 8-, 16-, 32-, and 64-frame accumulation Slow & Quick Motion function: (over and under-cranking) 720P – selectable from 1 to 60 fps as recording frame rate 1080P – selectable from 1 to 30 fps as recording frame rate SIGNAL INPUTS / OUTPUTS OUT: Composite – BNC, S-Video, Audio – RCA (Ch-1, Ch-2), Timecode – BNC, Component – Mini D, HD / SD-SDI – BNC, 2.0 IN: Timecode – BNC, Genlock – BNC, i.Link 4 pin Firewire, USB 2.0
