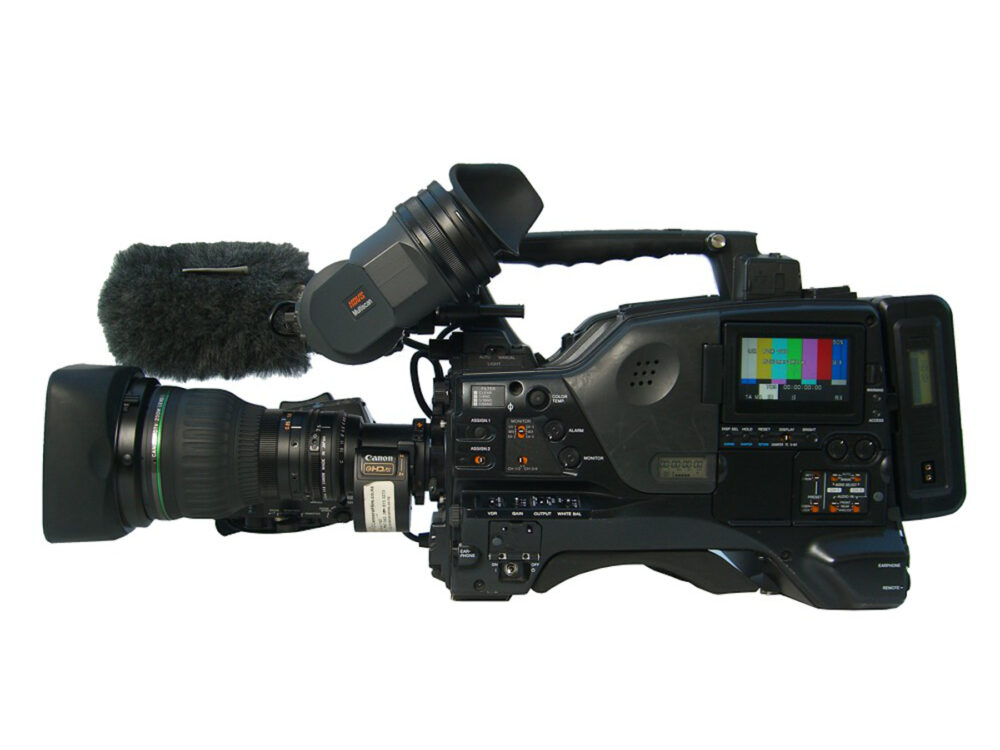

Sony PDW700 HD422 camera

RECORDING FORMAT Video: MPEG HD422 (CBR: 50Mb/s) MPEG HD HQ mode (VBR, max bit rate: 35 Mb/s) SP mode (CBR, 25 Mb/s) LP mode (VBR, max bit rate: 18 Mb/s MPEG IMX (CBR, 50/40/30 Mb/s) DVCAM (CBR, 25 Mb/s) Audio: MPEG HD 422: Four-channels, 24 bits/48kHz Recording Time: HD422 mode – approx. 43 min onto single layer 23GB disk 50 Mb/s mode – approx. 95 min. onto dual layer 50GB disc CAMERA SPECIFICATIONS CCDs: Three 2/3″ chip type HD Power HAD FX CCD’s, 14-bit A/D converter DSP Digital Head Recording Media: XDCAM disk (single 23GB or dual layer 50GB)\ Resolution: 1920 (horizontal) x 1080 (vertical) TV lines Sensitivity: 50i = F12 @ 2000 lux, 59.94i = F11 @ 2000 lux Shutter Speed: Off, 1/33, 1/50, 1,60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) Clear scan: 25 to 4700 Hz Slow Shutter: (down to 2-, 3-, 4-, 5-, 6-, 7-, 8-, 16-frame periods) S/N ratio: 59 dB with Noise Suppression mode Interval recording 3.5-inch type colour LCD display Picture Cache Recording up to 30 seconds Proxy Data recording, Metadata Freeze Mix function SIGNAL INPUTS / OUTPUTS OUT: SDI (HD/SD switchable) – BNC x2, HD Y/SD Composite – BNC, Audio – XLR 5-pin, Timecode – BNC, i.LINK, 6 pin Firewire, Ethernet – RJ-45, USB, Earphone – Mini-jack x2, DC IN: SDI (HD/SD switchable) – BNC, SD Composite – BNC, Audio – XLR 3-pin x2, Genlock – BNC, Timecode – BNC, USB, Eithernet – RJ-45, DC
